Add a chat region to a page

All tutorials

By the end of this lesson, an APEX page has a working chat region. The first message has no contract.

Lesson 1 of 6~20 minScript: 00_setup.sql

1. Lesson 1: Add a chat region to a page
2. Lesson 2: Give the chat one contract to work on
3. Lesson 3: See what the chat did
4. Lesson 4: Keep one user's conversation private
5. Lesson 5: Decide what happens when the page changes record
6. Lesson 6: Configure the chat interface for end users

What you build in this course

You build a chat page. An engineer opens one service contract, asks the desk a question about it, and gets an answer from your own tables.

The agent already exists. This course is about the part in front of it: the region, what it sends, what it stores, and what it lets a user see.

By the end you have a chat region that answers about one contract and no other, that keeps each user’s conversation private, and that you can debug when it goes quiet.

Before you start

You need UC AI 26.3 or later, installed and able to reach a model. If a call works, you are ready. If it does not, the installation guide covers the network and key setup.

The plug-in package calls execute_agent with p_run_context, which is new in 26.3, so it does not compile on an older version.

You also need the plug-in itself. It is attached to the latest UC AI release.

You do not need the first course

This course uses the service-contract desk from Build an Agent. The setup script below creates all of it, so you can start here.

If you completed Build an Agent, this setup resets its demo data. It drops and recreates the six sc_* tables and replaces sc_desk_pkg. It also updates SC_DESK_PROFILE version 1, its model configuration, and the four tool registrations. It activates version 1 of the profile and agent.

Use a separate demo schema if you need to retain your earlier data or configuration. The script sets the profile tool tags to scdesk, which removes the memory tag added in Build an Agent.

Run the setup script once:

sql your_user/your_password@your_db @00_setup.sql

It ends with a report. Every line must pass before you go on. To remove everything again later, run 00_teardown.sql from the same directory.

Tables      : 6 of 6
Package     : valid
Tools       : 4 of 4
Agent SC_DESK: active
Setup OK. Start lesson 1.

An archived agent looks like a broken plug-in

The last lesson of the first course uses change_status to archive an agent as a kill switch. An archived agent is invisible to a call that does not name a version, so the region fails and nothing on the page says why.

The line Agent SC_DESK: active above is the check. If it says anything else, run this:

begin
  uc_ai_agents_api.change_status(
    p_code    => 'SC_DESK'
  , p_version => 1
  , p_status  => 'active'
  );
  commit;
end;
/

Install the plug-in

1. Create the table

   Run ai_tables.sql from the plug-in files. It creates uc_ai_chat_messages, which holds every message of every conversation.

2. Install the package

   Run uc_ai_chat.pks and then uc_ai_chat.pkb. The package body calls UC AI, so UC AI must be installed first.

3. Import the plug-in

   Import the plug-in file into your APEX application, the same way you import any other component.

Add the region

1. Create the region

   Create a new region on your page. Set its type to UC AI Chat.

2. Name the agent

   Open the Agent group of the region attributes and set Agent Code to SC_DESK.

   This is the only attribute you must fill in. The rest have defaults.

3. Give the agent its values

   The desk expects three values on the first message: who is asking, what the date is, and the question. Set Agent Input Mapping to:

   {
     "engineer_name": "&APP_USER.",
     "today": "&P10_TODAY.",
     "question": "#USER_MESSAGE#"
   }

   &APP_USER. is the APEX user. #USER_MESSAGE# is what the user typed. Both are put into the JSON safely, so a quote in a question cannot break it.

4. Add the date item

   &P10_TODAY. needs a value. Create a hidden page item P10_TODAY, then add a computation on it with the point Before Header and this expression:

   to_char(sysdate, 'YYYY-MM-DD')

Use a computation, not an item default

The plug-in resolves &P10_TODAY. on the server, when your message arrives, and it reads the value from session state. A value that exists only in the browser is not in session state, so the plug-in gets nothing and the agent stops with a missing-value error.

A computation writes to session state. The item looks correct on the page either way.

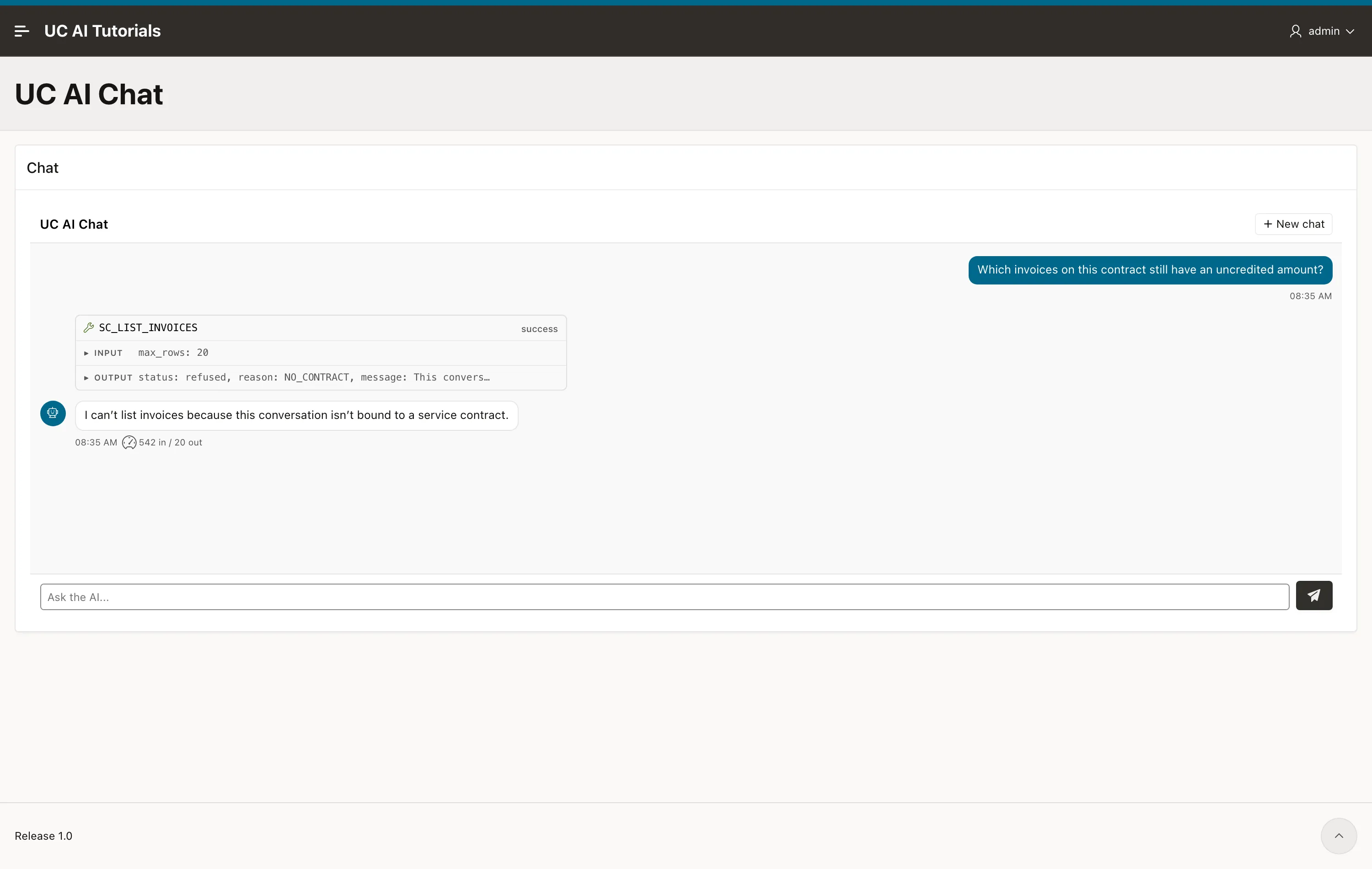

Send the first message

Run the page and ask the desk a question about the contract:

Which invoices on this contract still have an uncredited amount?

Response without a contract ID

Recorded answergpt-5.6-terra3.3s2026-08-25

I can’t list invoices because this conversation isn’t bound to a service contract.

Your wording will differ. What must match is the data, and the checks below.

The turn finished. The model called the tool, the tool refused, and the model explained the refusal.

The tool result:

{
  "status": "refused",
  "reason": "NO_CONTRACT",
  "message": "This conversation is not bound to a service contract, so I cannot list its invoices."
}

The tools of this desk have no contract parameter. The model cannot name a contract, because there is nothing to name it in. The contract comes from the application, and so far the application has not given one.

That is what the next lesson adds.

Check it yourself

The answer text will differ on your run. What must match is the sequence of rows the plug-in stored:

select role, turn_status, tool_name, input_tokens, output_tokens
  from uc_ai_chat_messages
 order by id desc
 fetch first 4 rows only;

ROLE           TURN_STATUS   TOOL_NAME           INPUT_TOKENS  OUTPUT_TOKENS
assistant                                                 542             20
tool_result                  SC_LIST_INVOICES
tool_call                    SC_LIST_INVOICES
user           done

Four rows for one message. The user row carries the status of the whole turn, and done means the turn finished. A refusal is a result, not an error.

Key takeaways

• One attribute makes a chat region work: Agent Code.
• The plug-in stores every part of a turn in uc_ai_chat_messages, one row for each: the question, each tool call, each tool result, and the answer.
• &P10_TODAY. needs a computation, because the plug-in reads page items on the server: to_char(sysdate, 'YYYY-MM-DD').

Full reference: the APEX Chat plug-in guide lists every region attribute with its type and default.

Next lesson: Give the chat one contract to work onThe region attribute that binds a conversation to one record, and how to prove it cannot read another.
