Using native PL/SQL API

:::note Prerequisites

Before implementing the plug-in please red the implementation prerequisites described in parent document.

:::

This instruction covers required steps to implement the Rich Text Editor Pro using native Oracle APEX PL/SQL API. The guidelines utilize APEX wizard creating report with form creating required components which are later replaced with PL/SQL processes handling CLOB values.

Create report page linked with modal page

In the application builder home page click Create Page button.

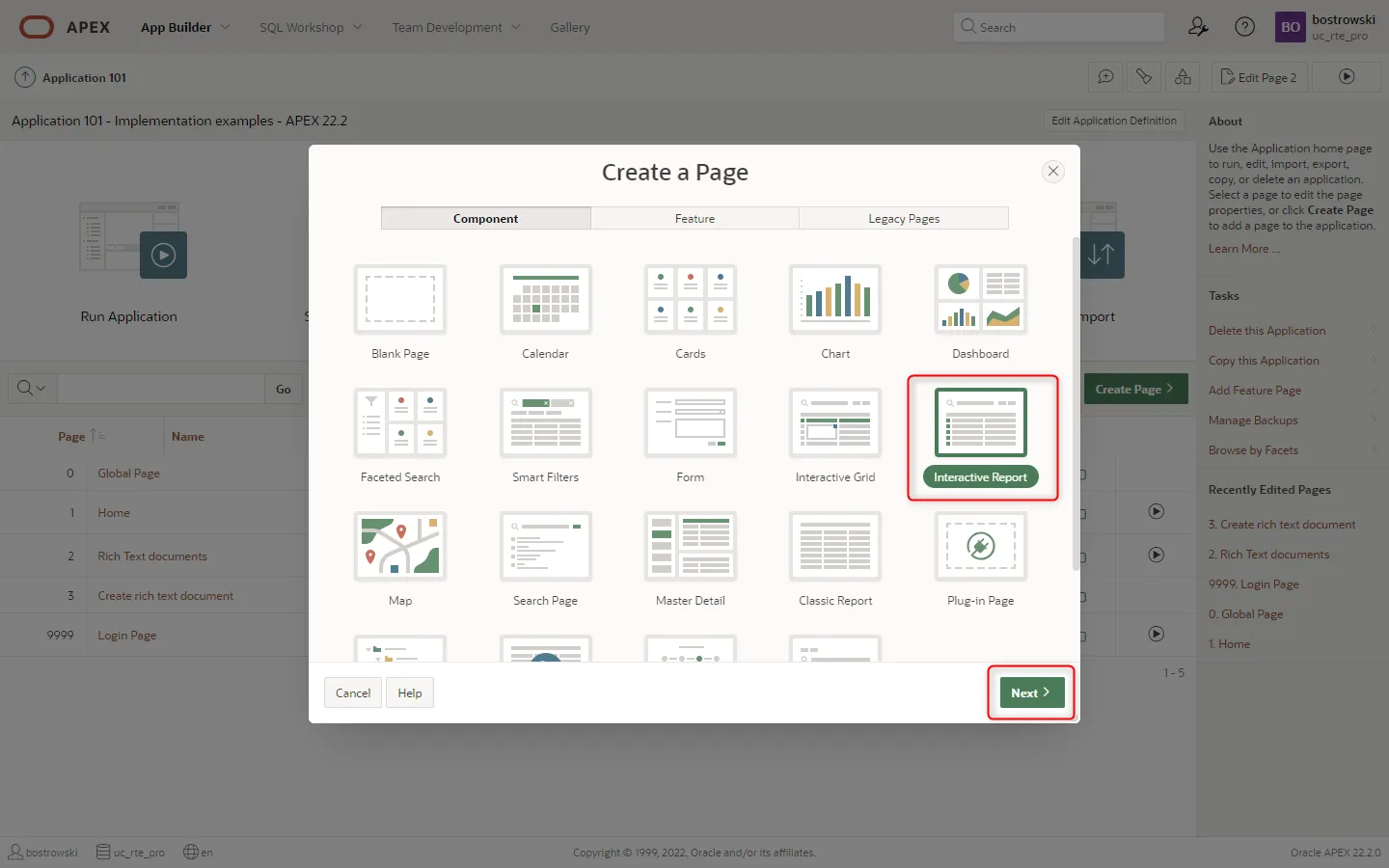

In the Create Page wizard step select Interactive Report and click the Next button.

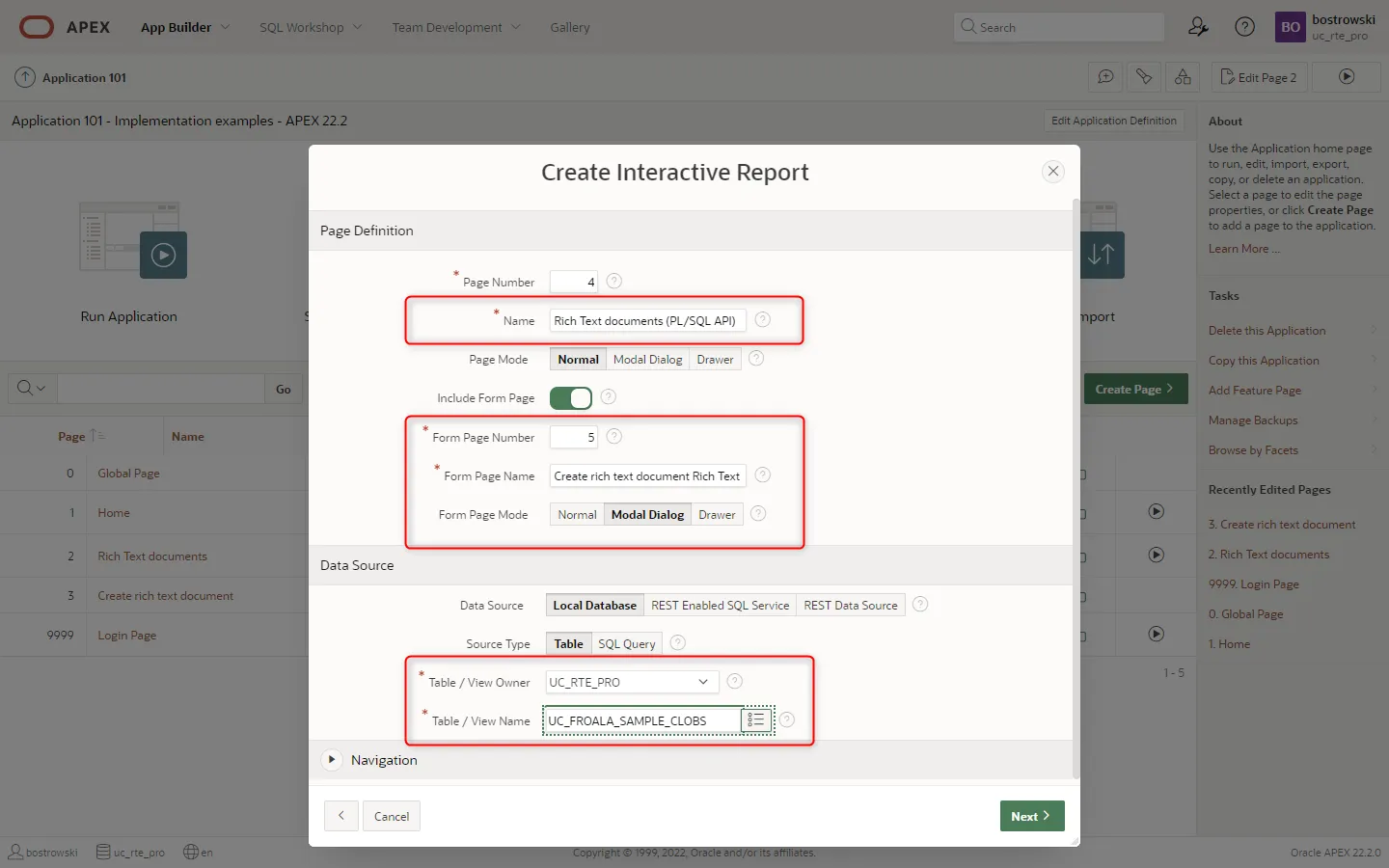

In the Create Interactive Report wizard step

1. Set Page Number to 4
2. Set Name to Rich Text documents (PL/SQL API)
3. Enable Include Form page
4. Set Form Page Number to 5
5. Set Form Page Name to Create rich text document
6. Set Form Page Mode to Modal Dialog
7. Set Table / View Name to UC_FROALA_SAMPLE_CLOBS
8. Click the Next button

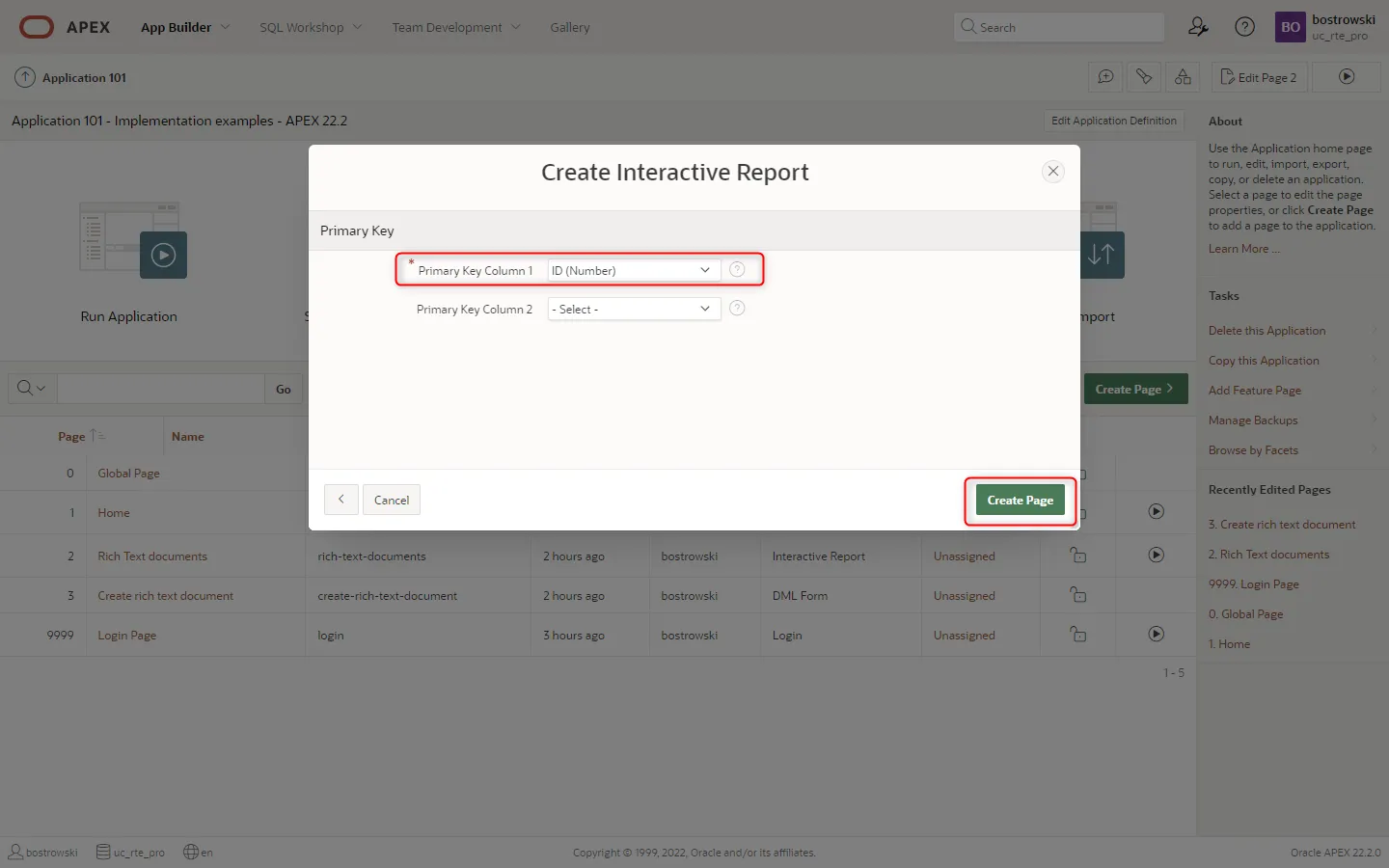

In the Create Interactive Report wizard step set Primary Key Column 1 to ID (Number) and click the Create Page button.

Adjust report columns

:::note about the step

This steps hides columns from table UC_FROALA_SAMPLE_CLOBS which are used by the plug-in sample application and are not important for this guidelines.

:::

Navigate page designer to page 4 - Rich Text documents (PL/SQL API) and hide the following columns by setting column attribute Identification / Type to Hidden Column:

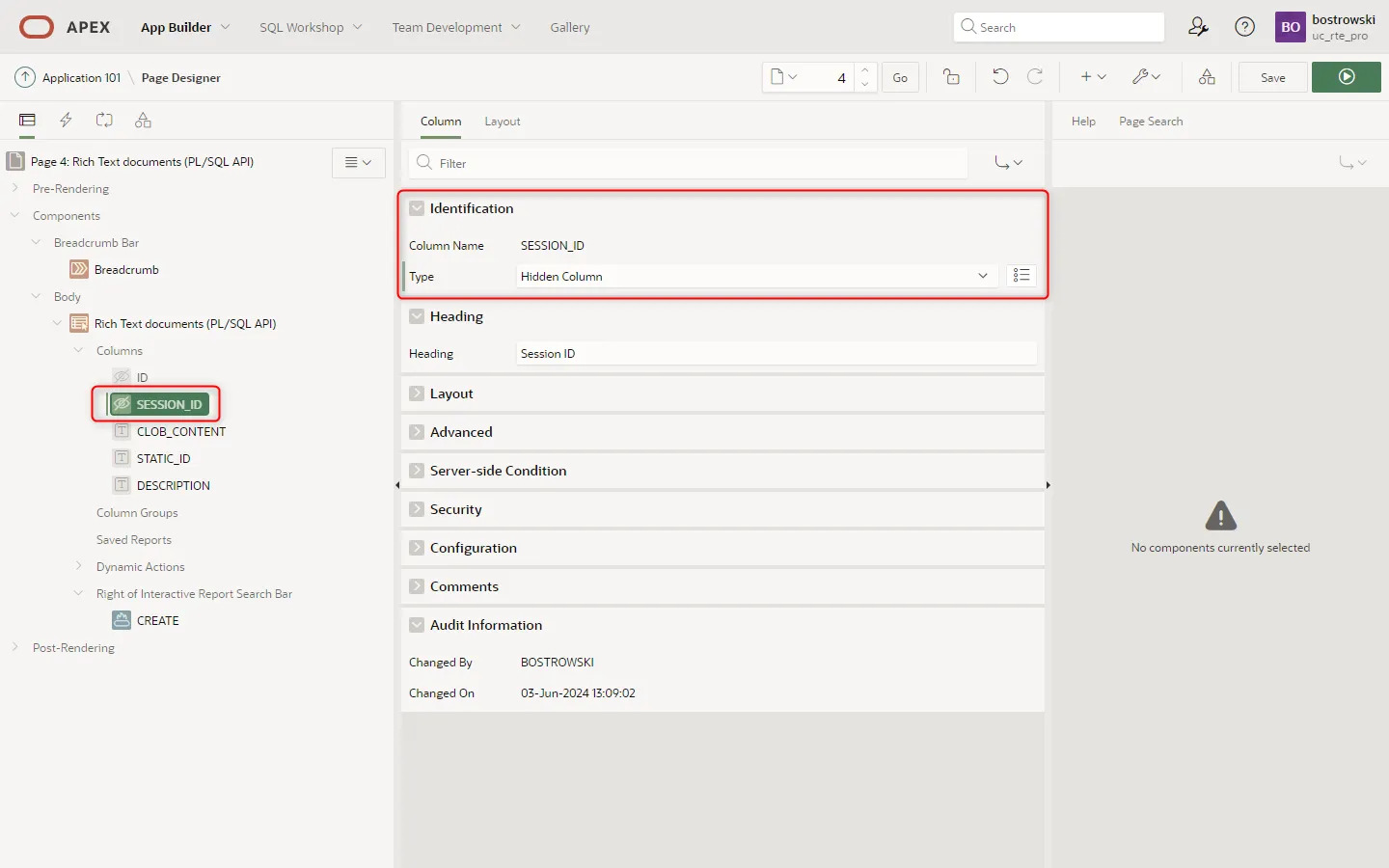

• SESSION_ID

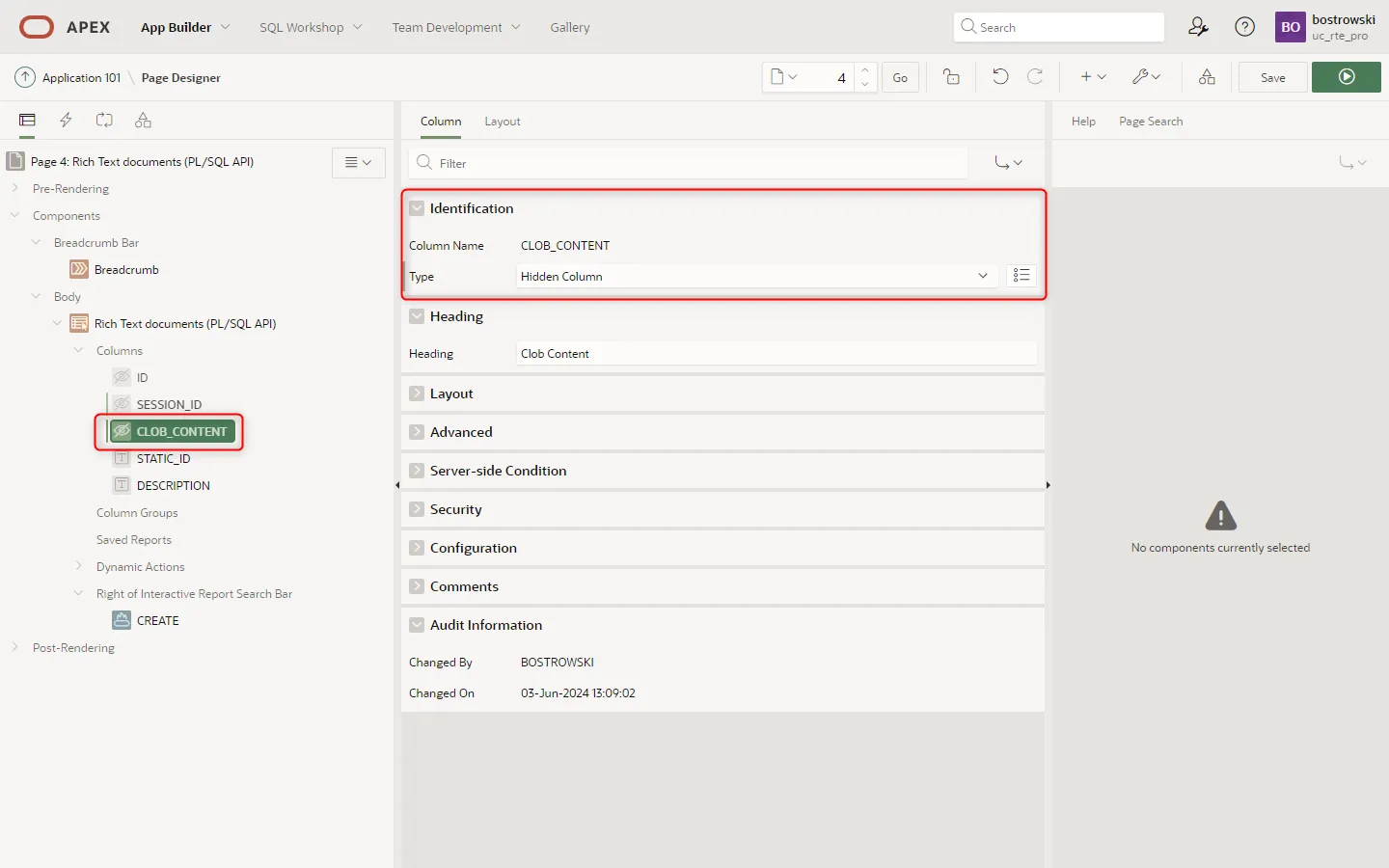

• CLOB_CONTENT

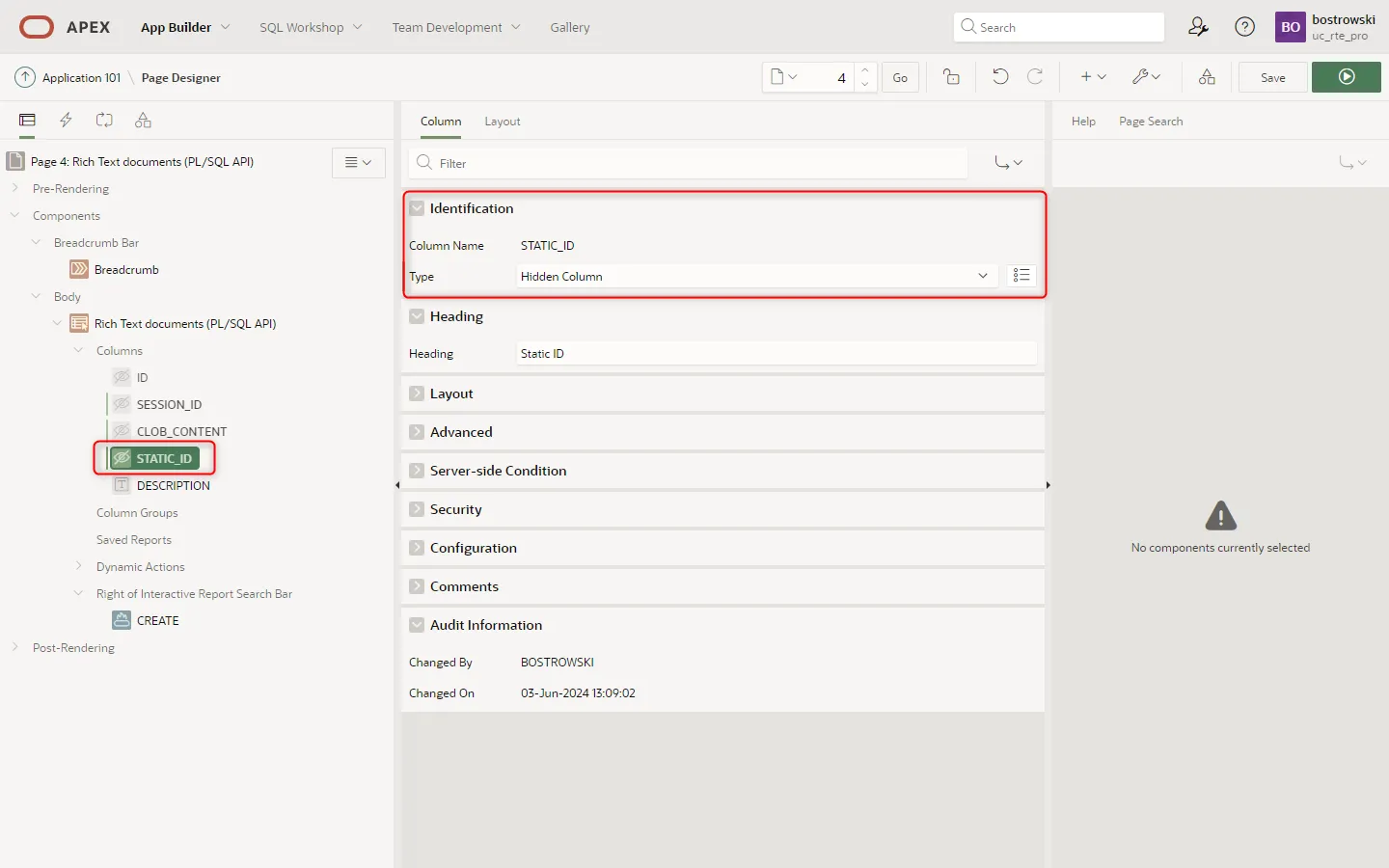

• STATIC_ID

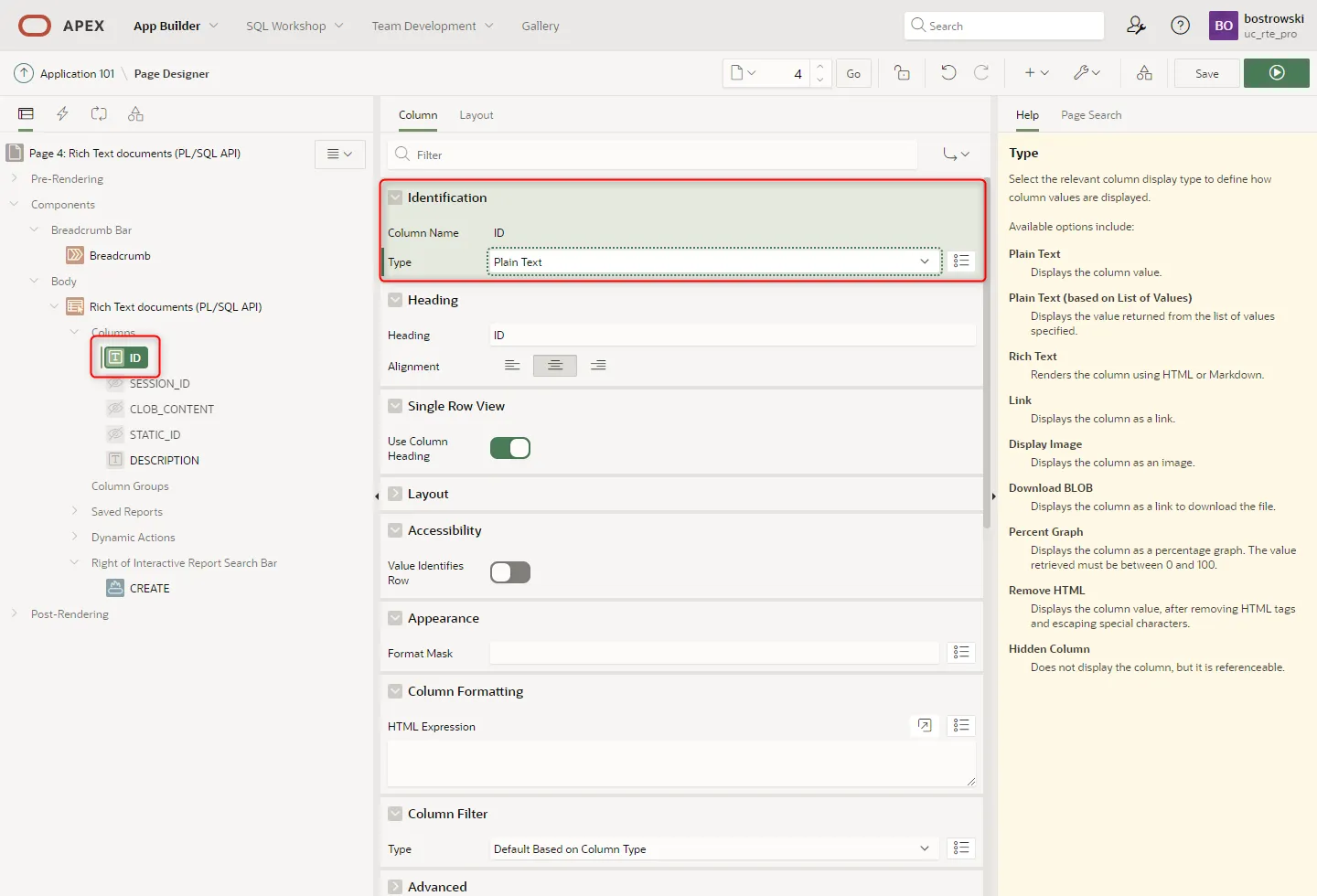

To identify document in a report, show the column ID by setting Identification / Type to Plain Text.

Modify modal page items

:::note about this step

Page items P5_SESSION_ID and P5_STATIC_ID were created by APEX page wizard. This page items are not important for this guidelines.

:::

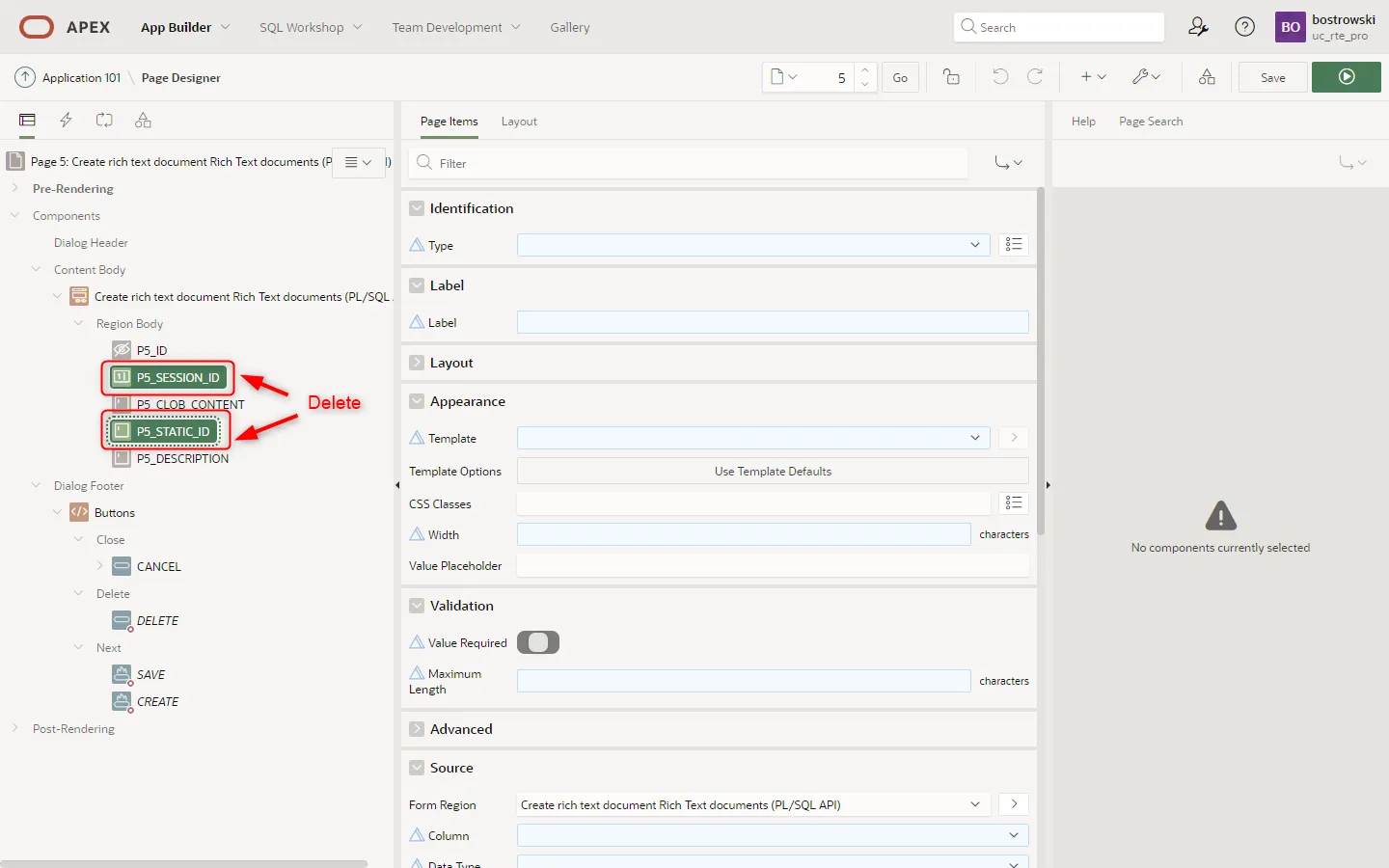

Select page items P5_SESSION_ID and P5_STATIC_ID, press delete key and save the page.

Remove form components

:::note about this step

Removed processes in this step are native form component processes loading, creating, updating and deleting rows in the database table. These components were created by APEX wizard and they will be replaced with custom PL/SQL processes using native APEX PL/SQL API.

:::

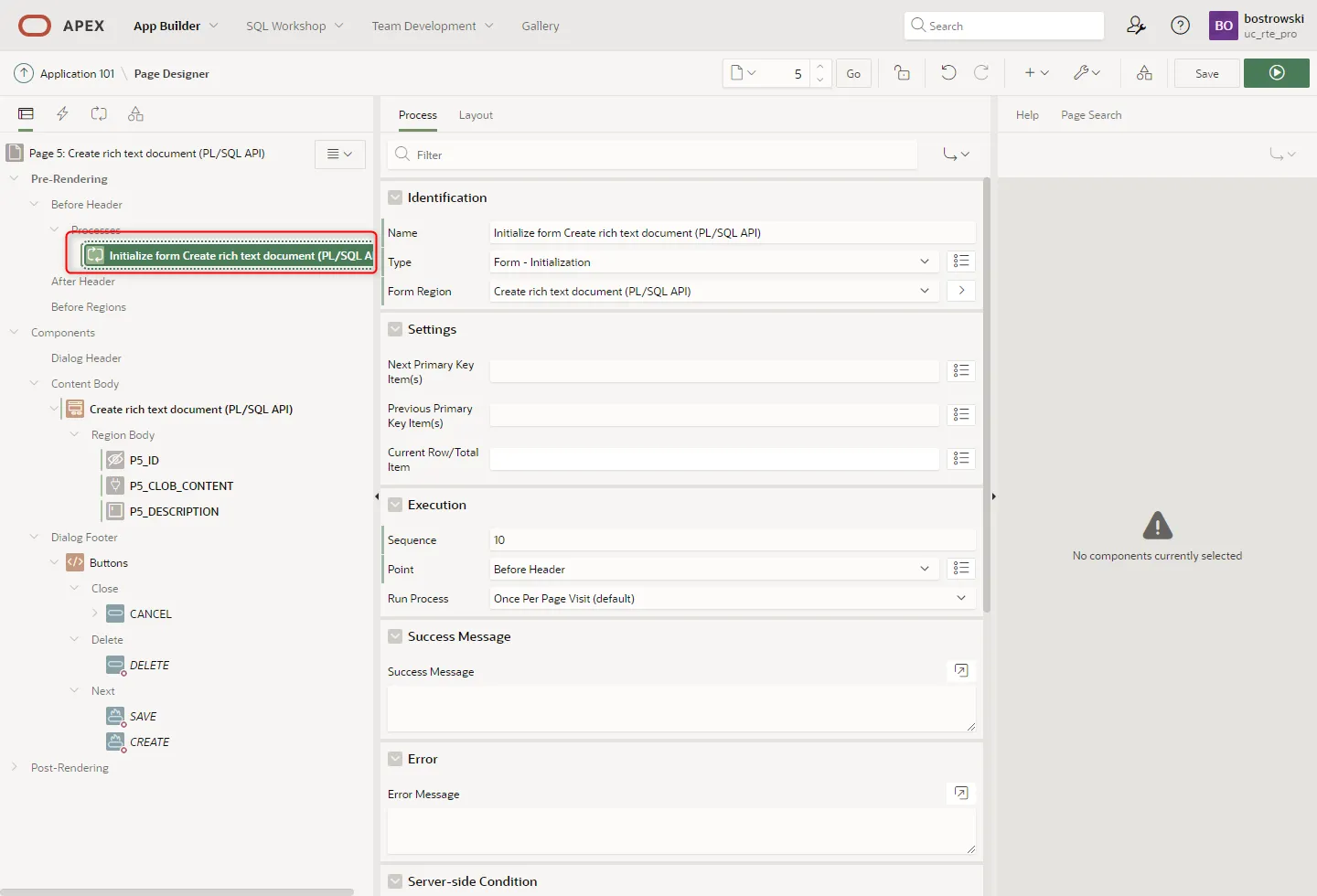

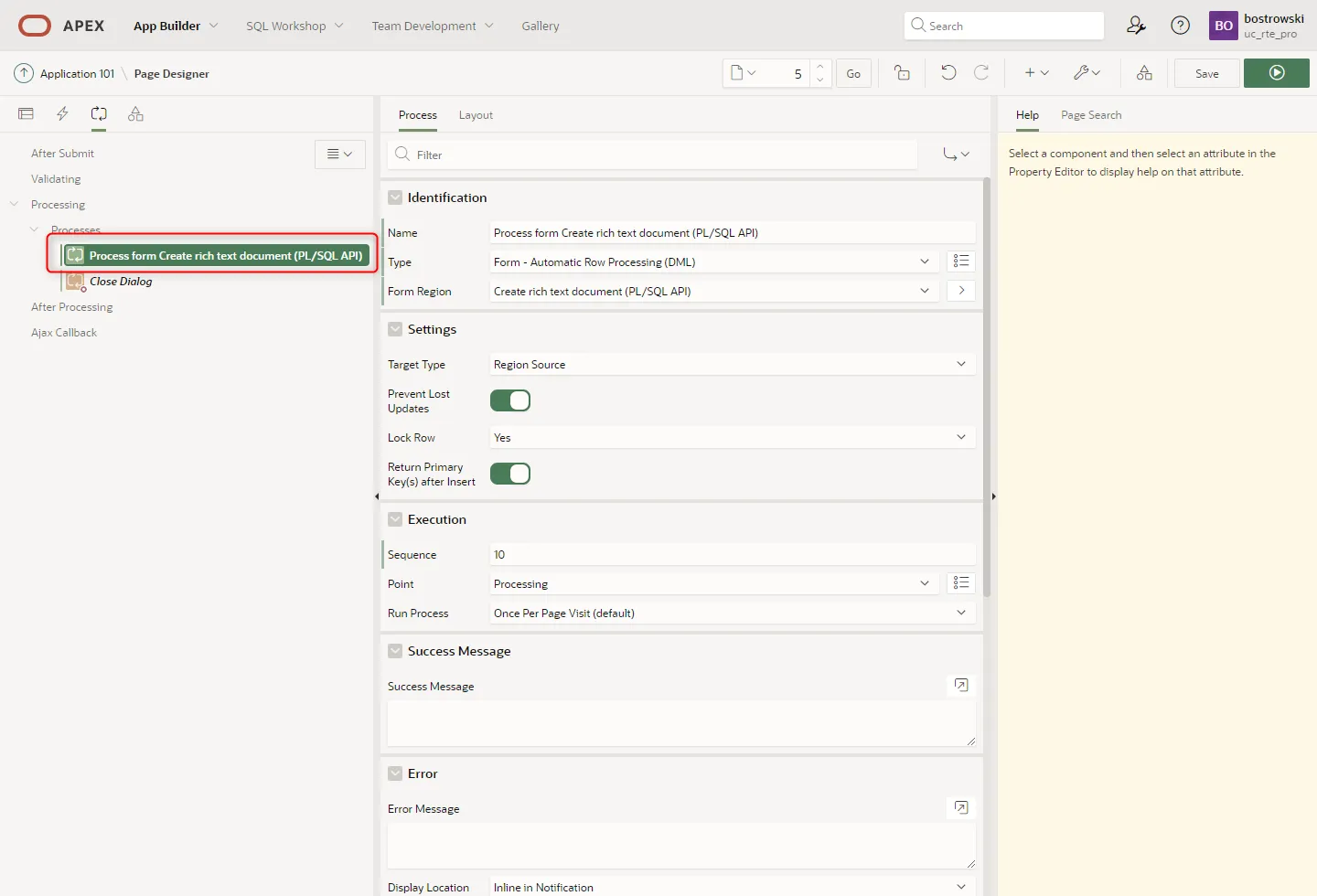

1. Select before header and processing processes and using DELETE key remove these processes.

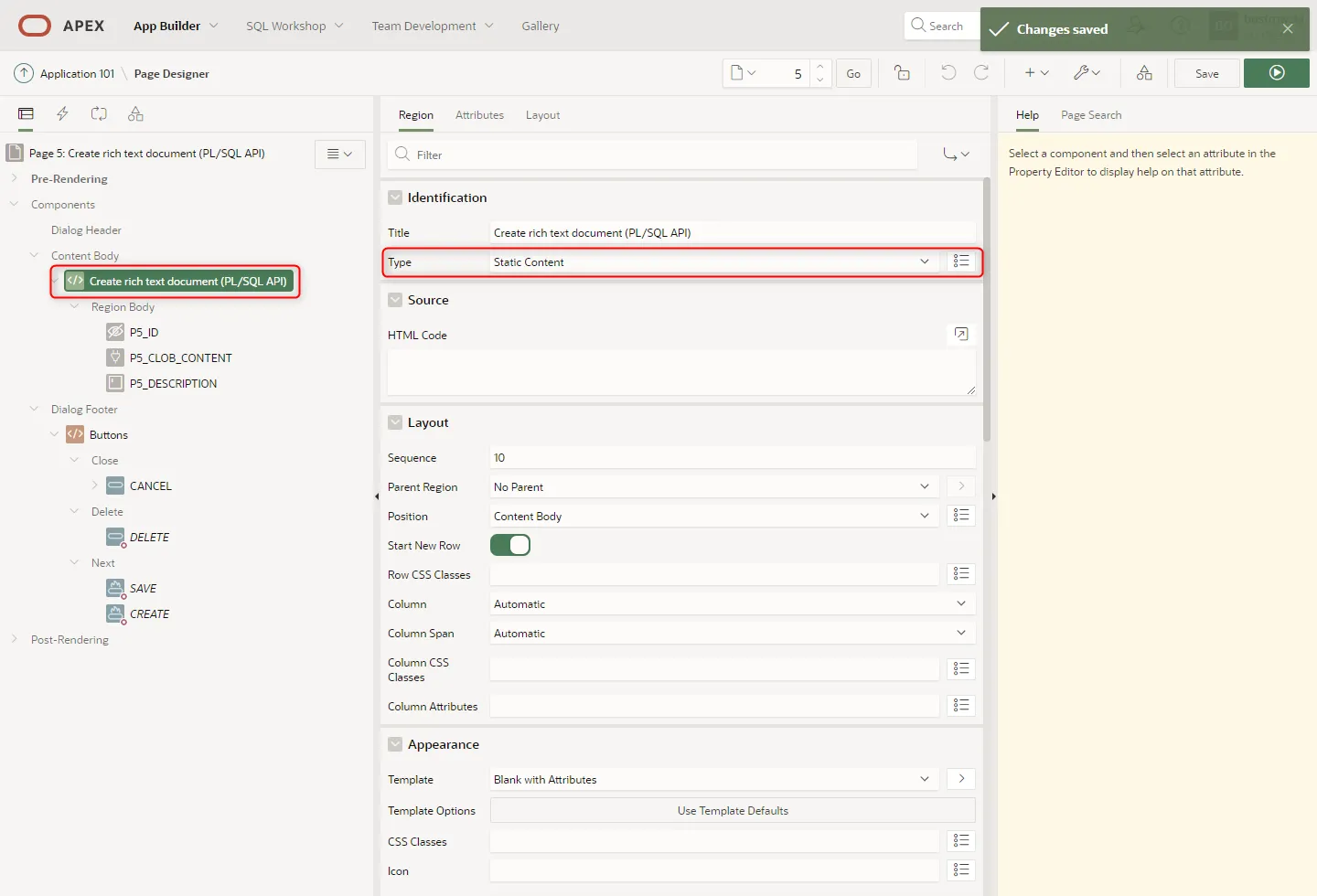

2. Select region Create rich text documents (PL/SQL API) and change Type to Static Content

Enable page item plug-in

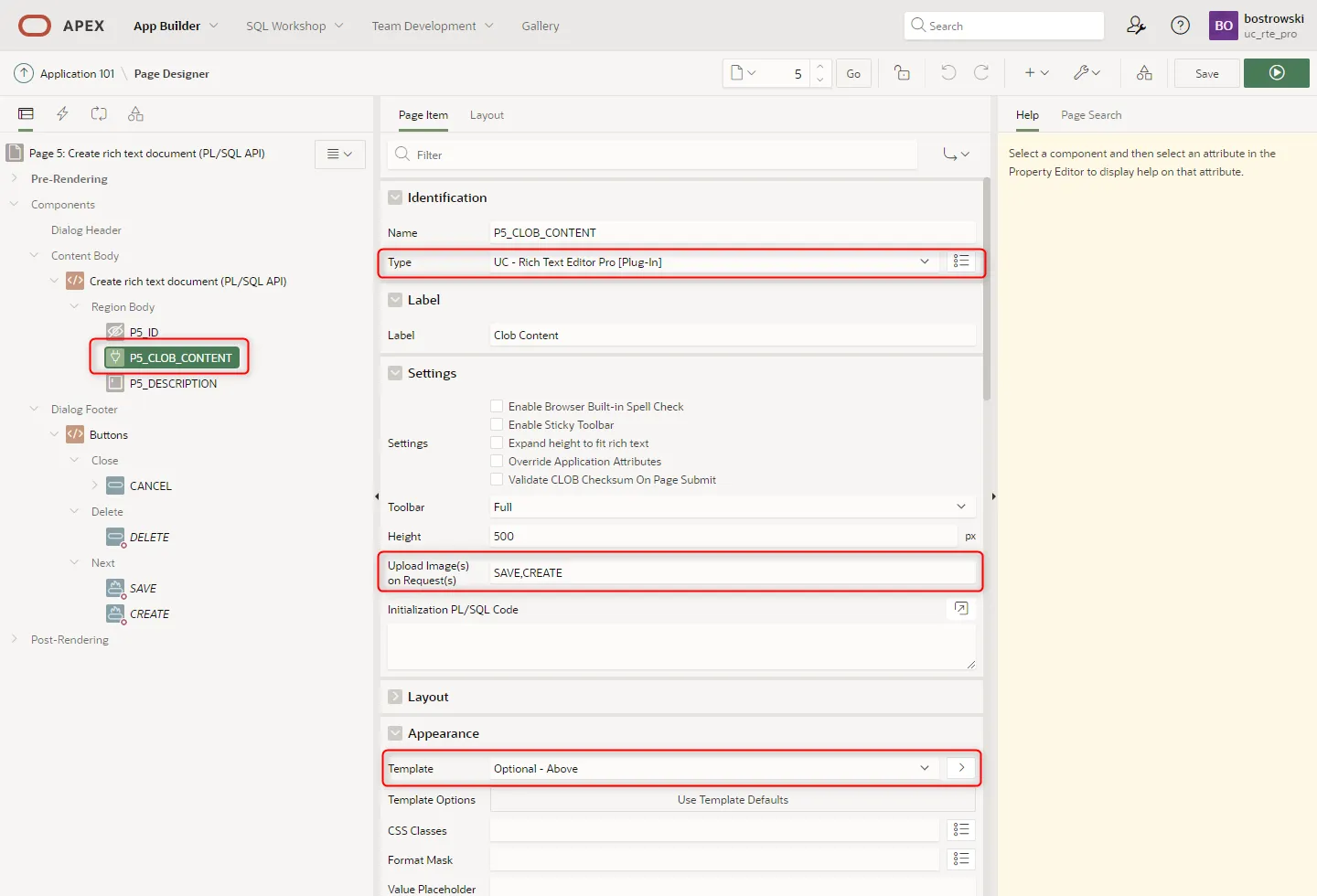

Select page item P5_CLOB_CONTENT and:

1. Change Identification / Type to UC - Rich Text Editor Pro [Plug-In]
2. (Optional) Set Settings / Upload Image(s) on Request(s) to SAVE,CREATE
3. Set Appearance / Template to Optional - Above

Page processes handling documents

In this step four process are created to load, create, update and delete a document in the database table UC_FROALA_SAMPLE_CLOBS. All processes uses PL/SQL bind variables referencing page items values in the session state.

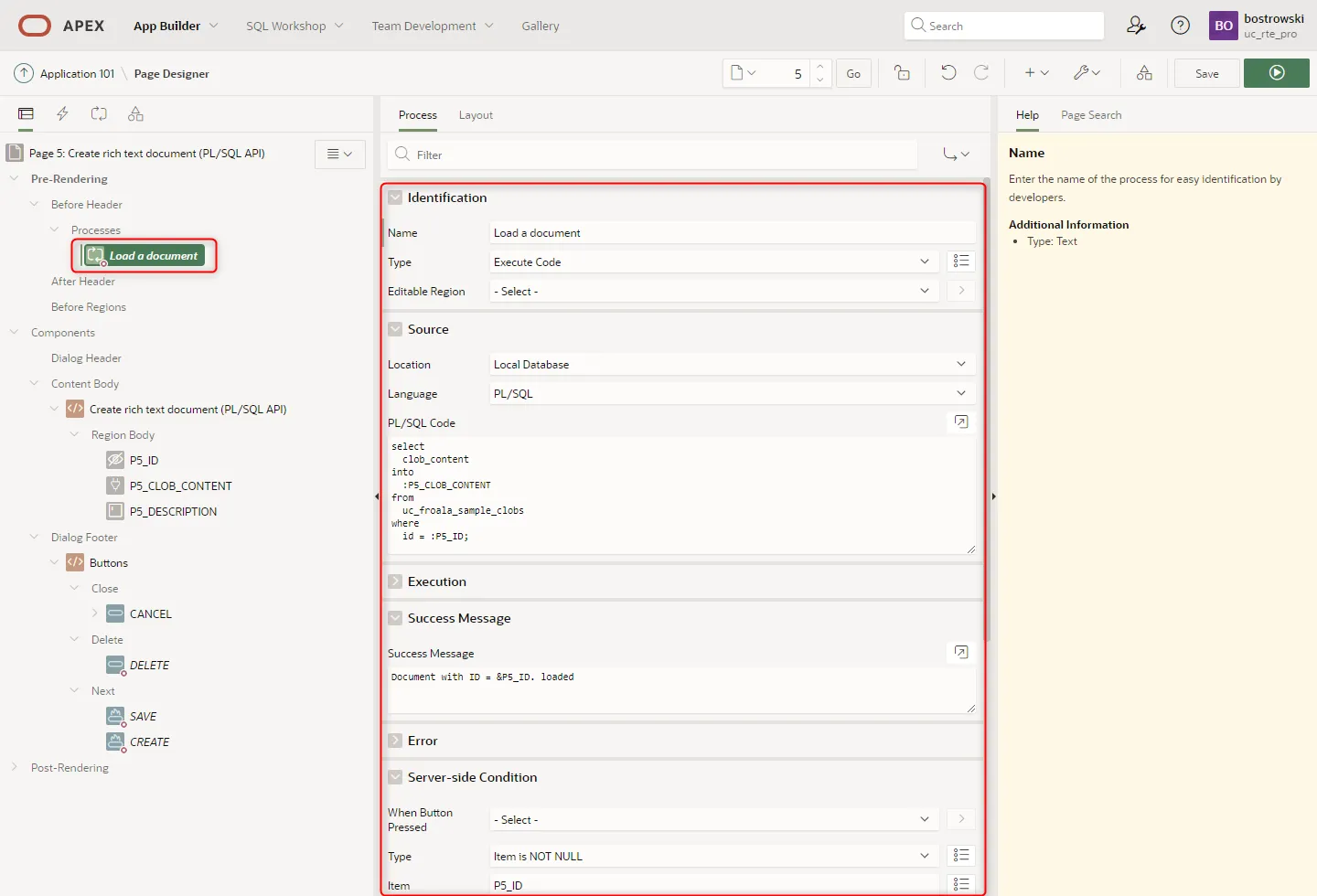

Before header - load a document

Create a new page process and:

1. Set Identification / Name to Load a document
2. Set Identification / Type to Execute Code
3. Set Execution / Point to Before Header
4. Set Source / Language to PL/SQL
5. Set Source / PL/SQL Code
6. Set Success Message to Document with ID = &P5_ID. loaded
7. Set Server-side Condition / When Button Pressed to CREATE

select
  clob_content
into
  :P5_CLOB_CONTENT
from
  uc_froala_sample_clobs
where
  id = :P5_ID;

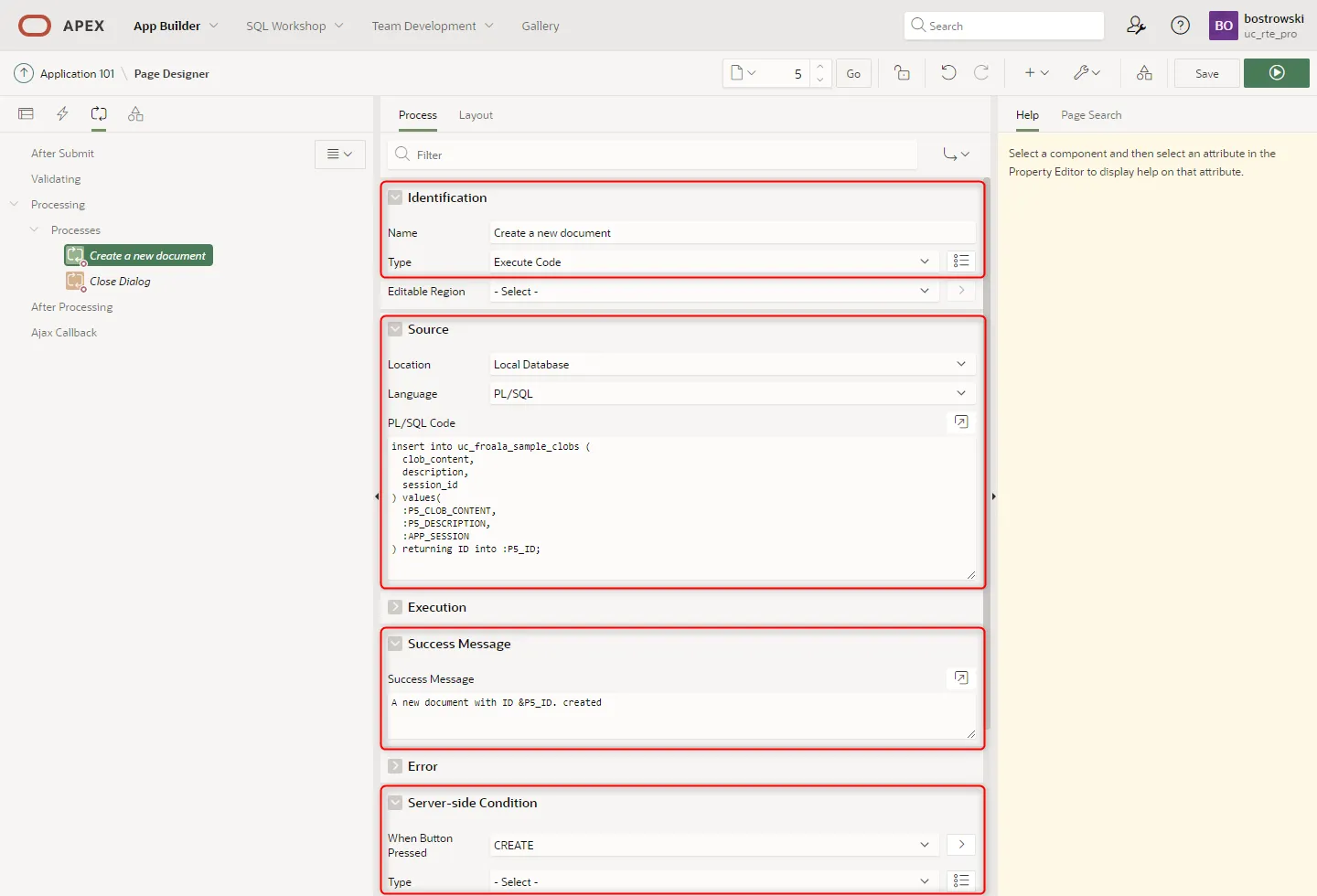

Processing - Create a document

Create a new page process and:

1. Set Identification / Name to Create a new document
2. Set Identification / Type to Execute Code
3. Set Execution / Point to Processing
4. Set Source / Language to PL/SQL
5. Set Source / PL/SQL Code
6. Set Success Message to A new document with ID &P5_ID. created
7. Set Server-side Condition / When Button Pressed to CREATE

insert into uc_froala_sample_clobs (
  clob_content,
  description,
  session_id
) values(
  :P5_CLOB_CONTENT,
  :P5_DESCRIPTION,
  :APP_SESSION
) returning ID into :P5_ID;

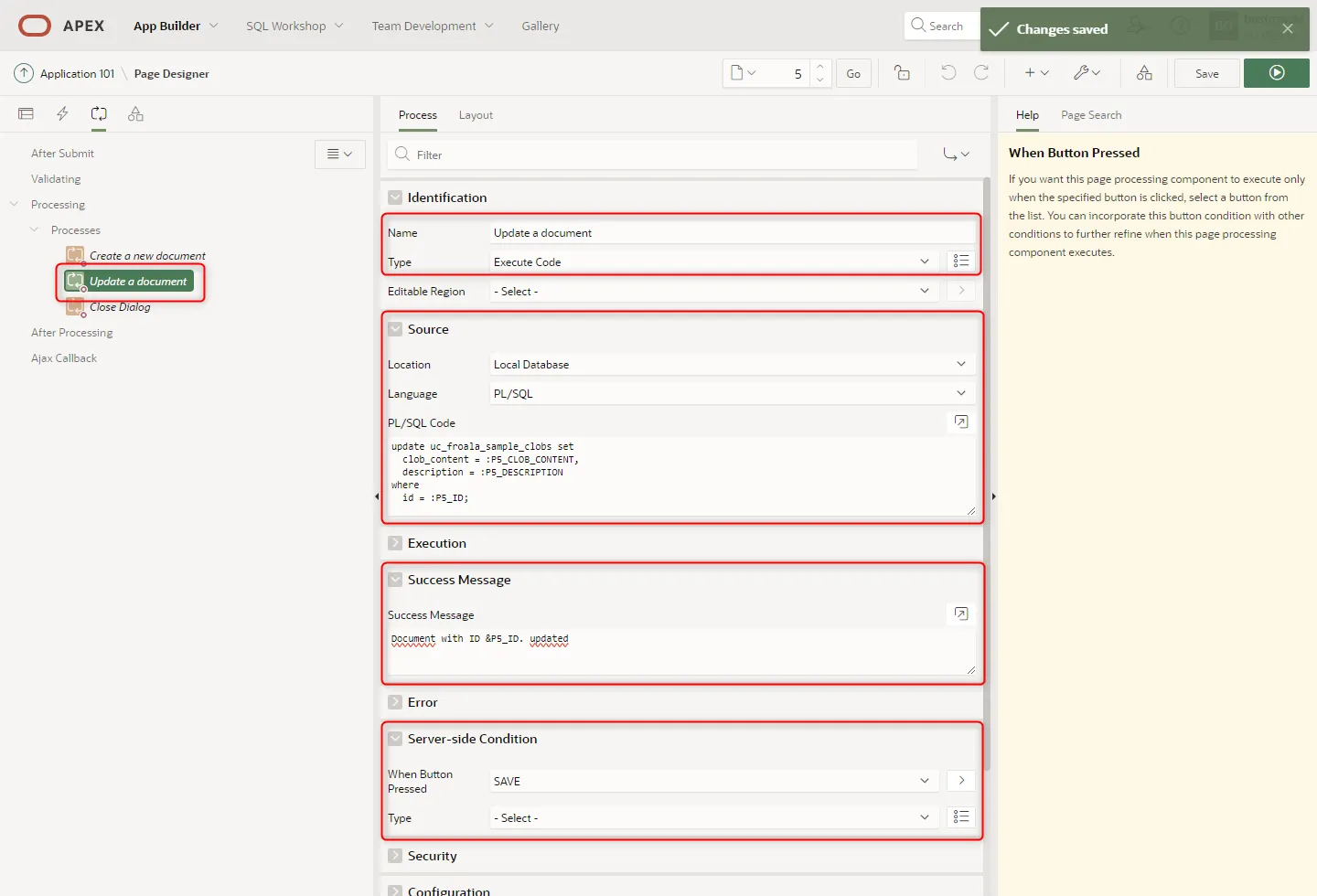

Processing - Update a document

Create a new page process and:

1. Set Identification / Name to Update a document
2. Set Identification / Type to Execute Code
3. Set Execution / Point to Processing
4. Set Source / Language to PL/SQL
5. Set Source / PL/SQL Code
6. Set Success Message to Document with ID &P5_ID. updated
7. Set Server-side Condition / When Button Pressed to SAVE

update uc_froala_sample_clobs set
  clob_content = :P5_CLOB_CONTENT,
  description = :P5_DESCRIPTION
where
  id = :P5_ID;

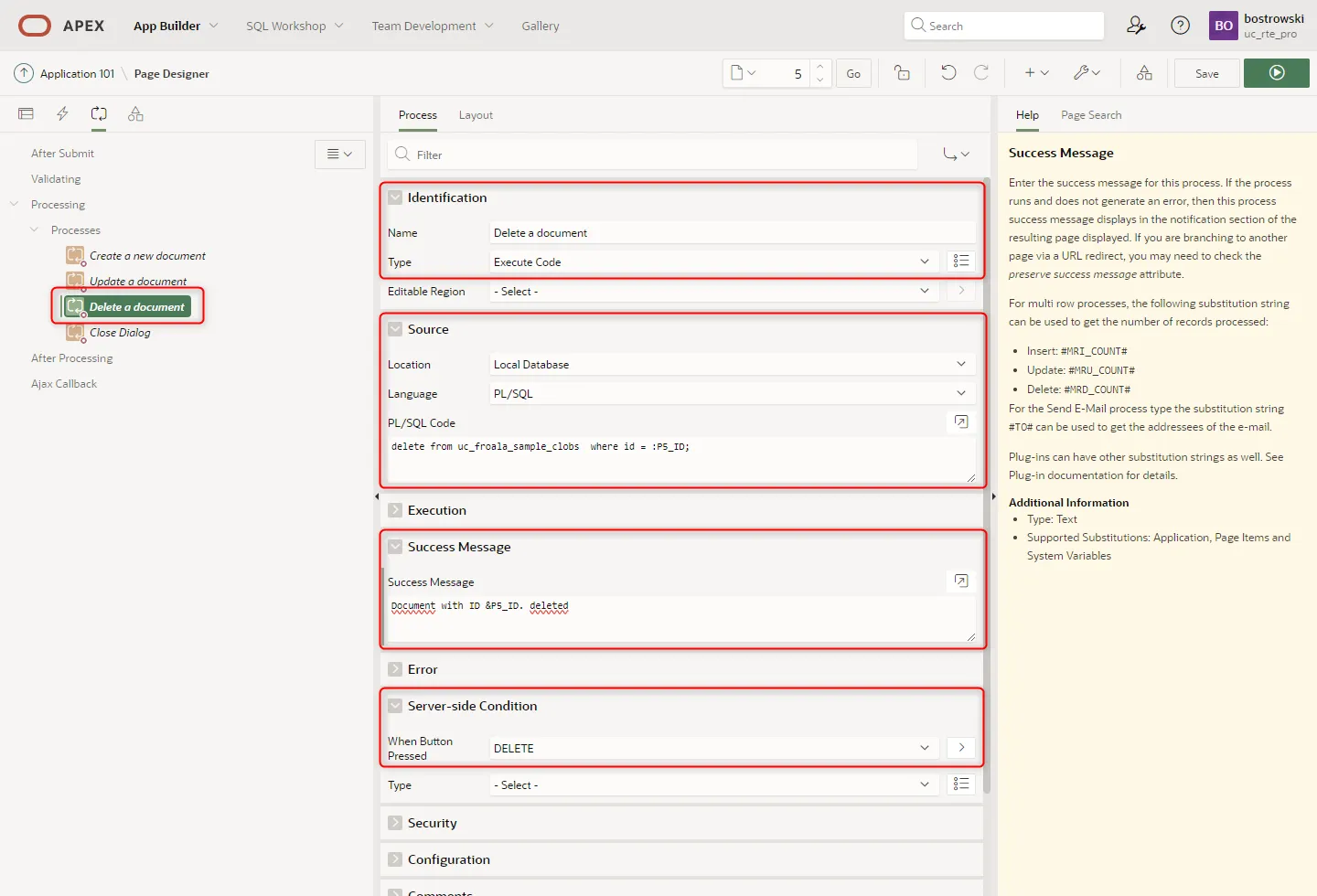

Processing - Delete a document

Create a new page process and:

1. Set Identification / Name to Delete a document
2. Set Identification / Type to Execute Code
3. Set Execution / Point to Processing
4. Set Source / Language to PL/SQL
5. Set Source / PL/SQL Code
6. Set Success Message to Document with ID &P5_ID. deleted
7. Set Server-side Condition / When Button Pressed to SAVE

delete from uc_froala_sample_clobs  where id = :P5_ID;

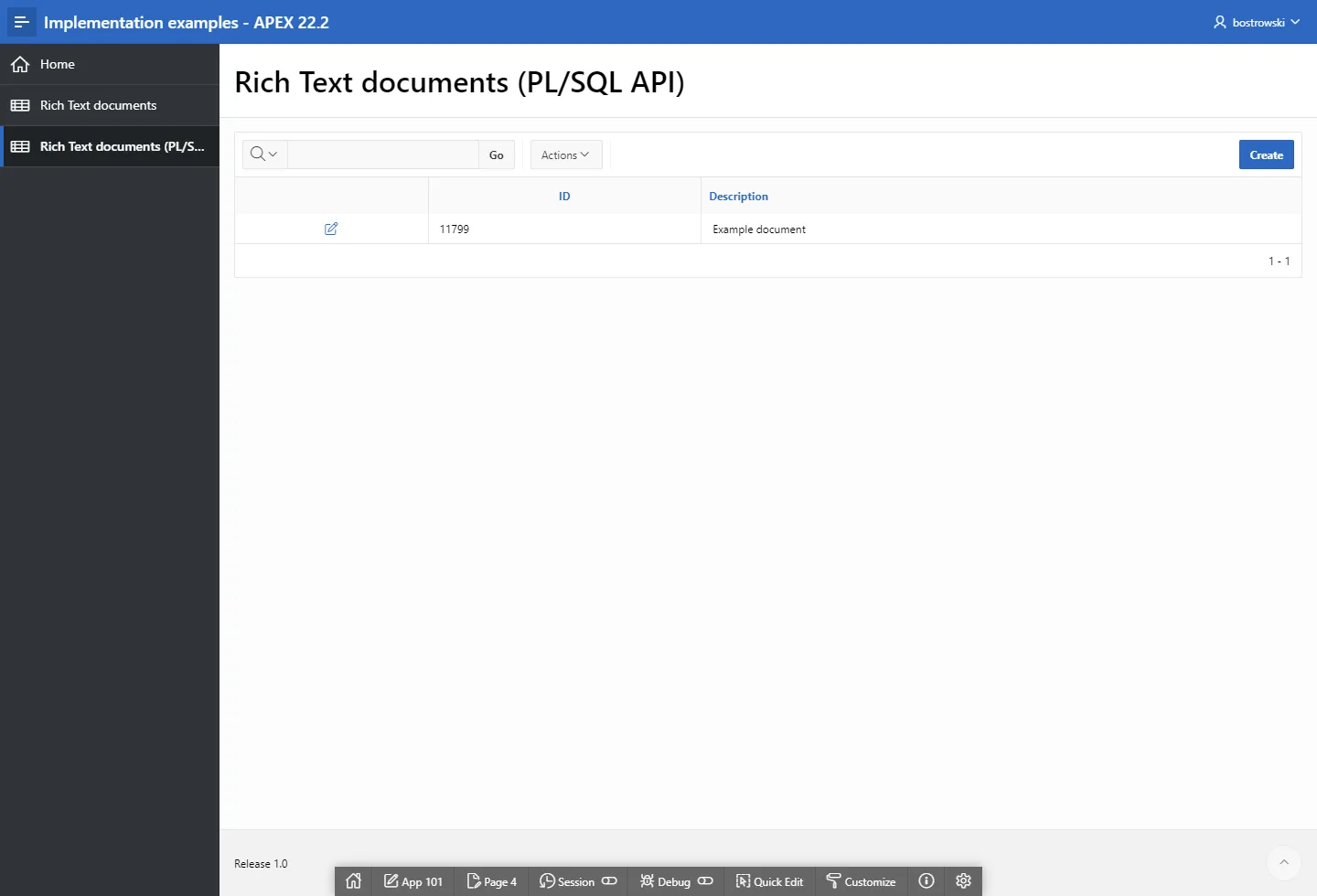

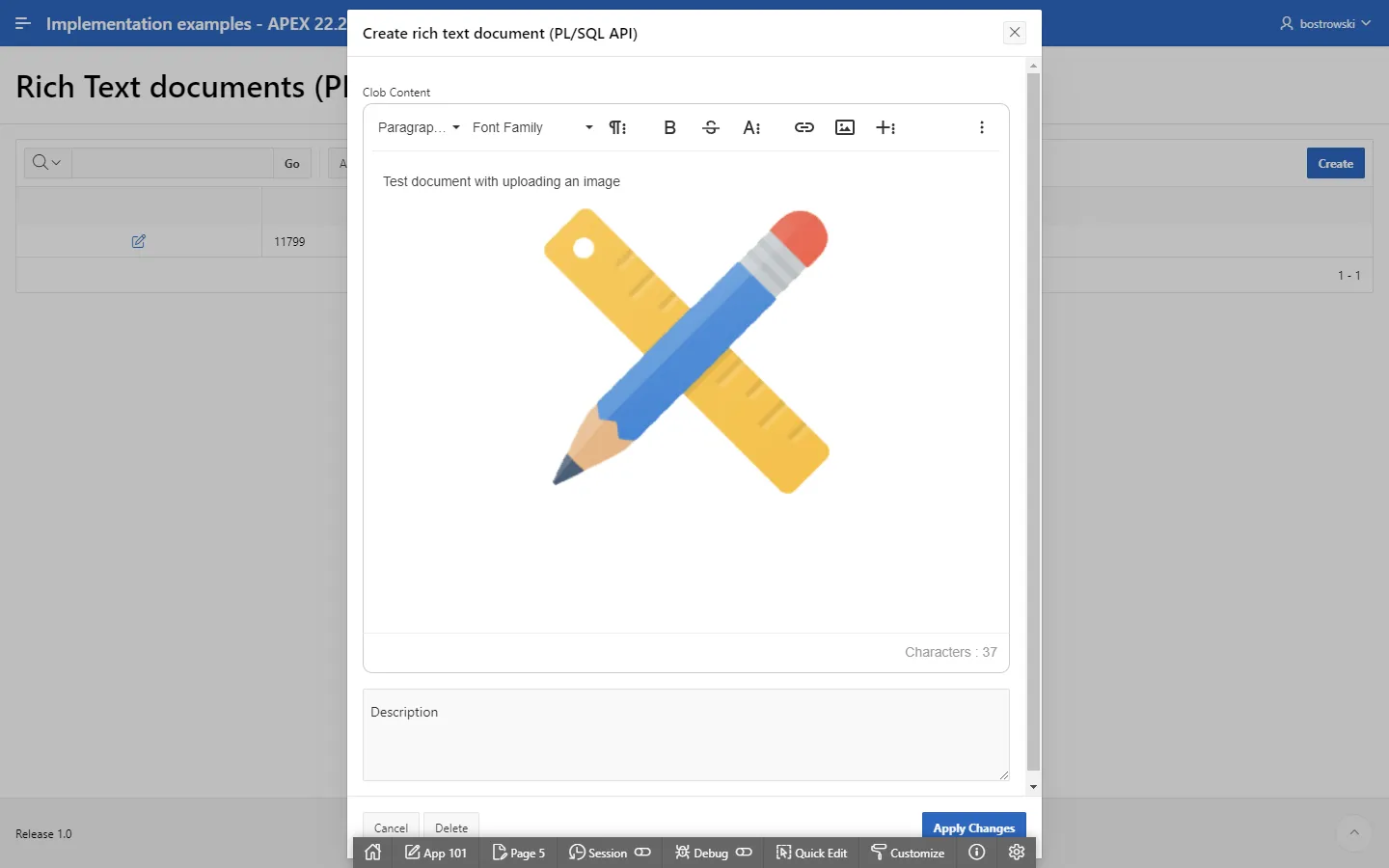

Test it

To test the implementation using interactive report and modal page implementing the plug-in run page 4 - Rich Text documents (PL/SQL API).
