Functionality

The plug-in enables customizing Oracle APEX JET charts with the plug-in interface exposing JET chart attributes.

Download

When selected, the plug-in generates a PNG image and forces the download of it.

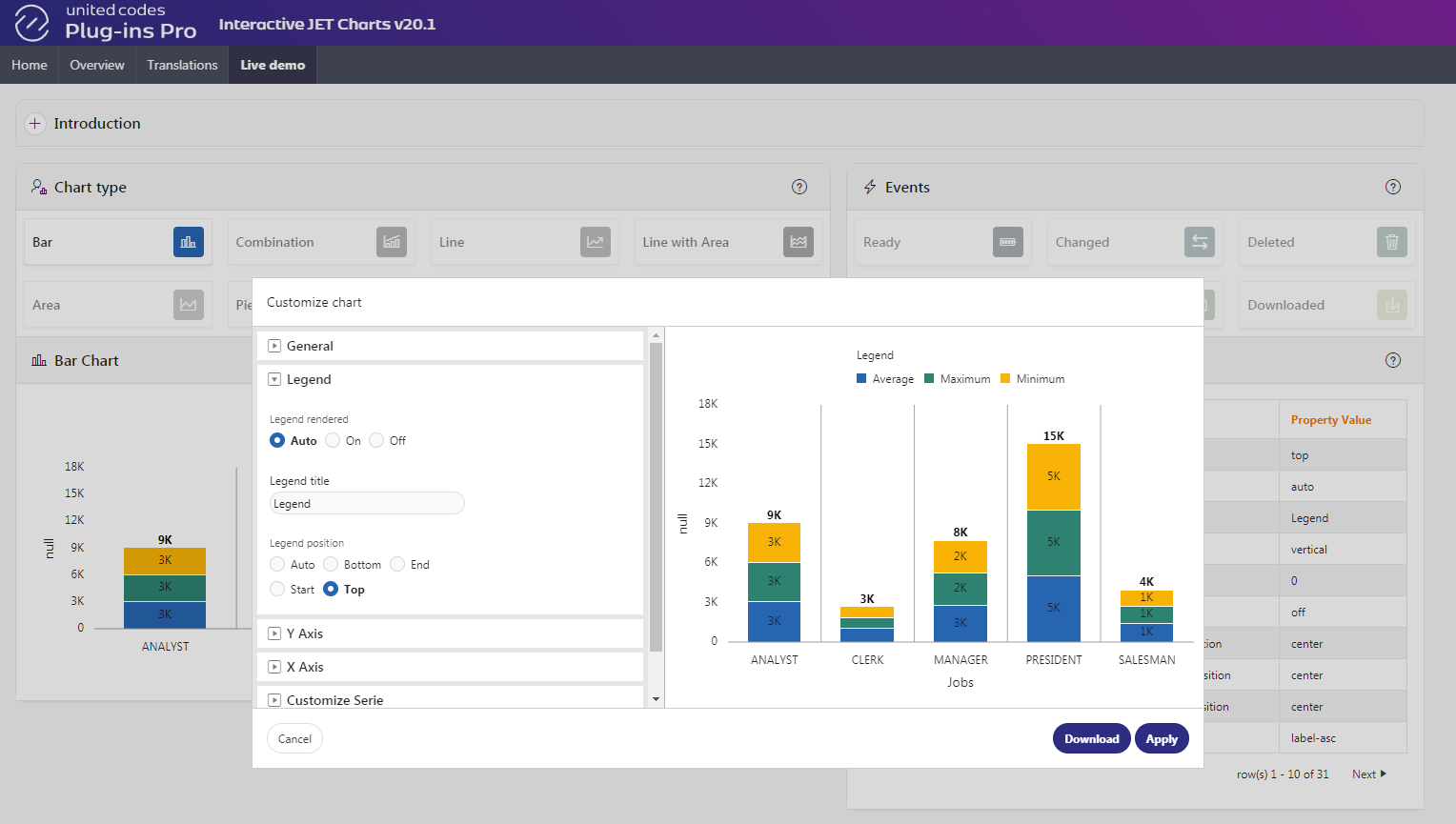

Settings

When selected, the plug-in generates an interface allowing chart attribute customization. The customization can be done using 37 (in total) JET chart attributes. Applied customizations can be saved using Reports \ Save functionality.

Reports

The plug-in allows end-users to save customizations done to a named chart report.

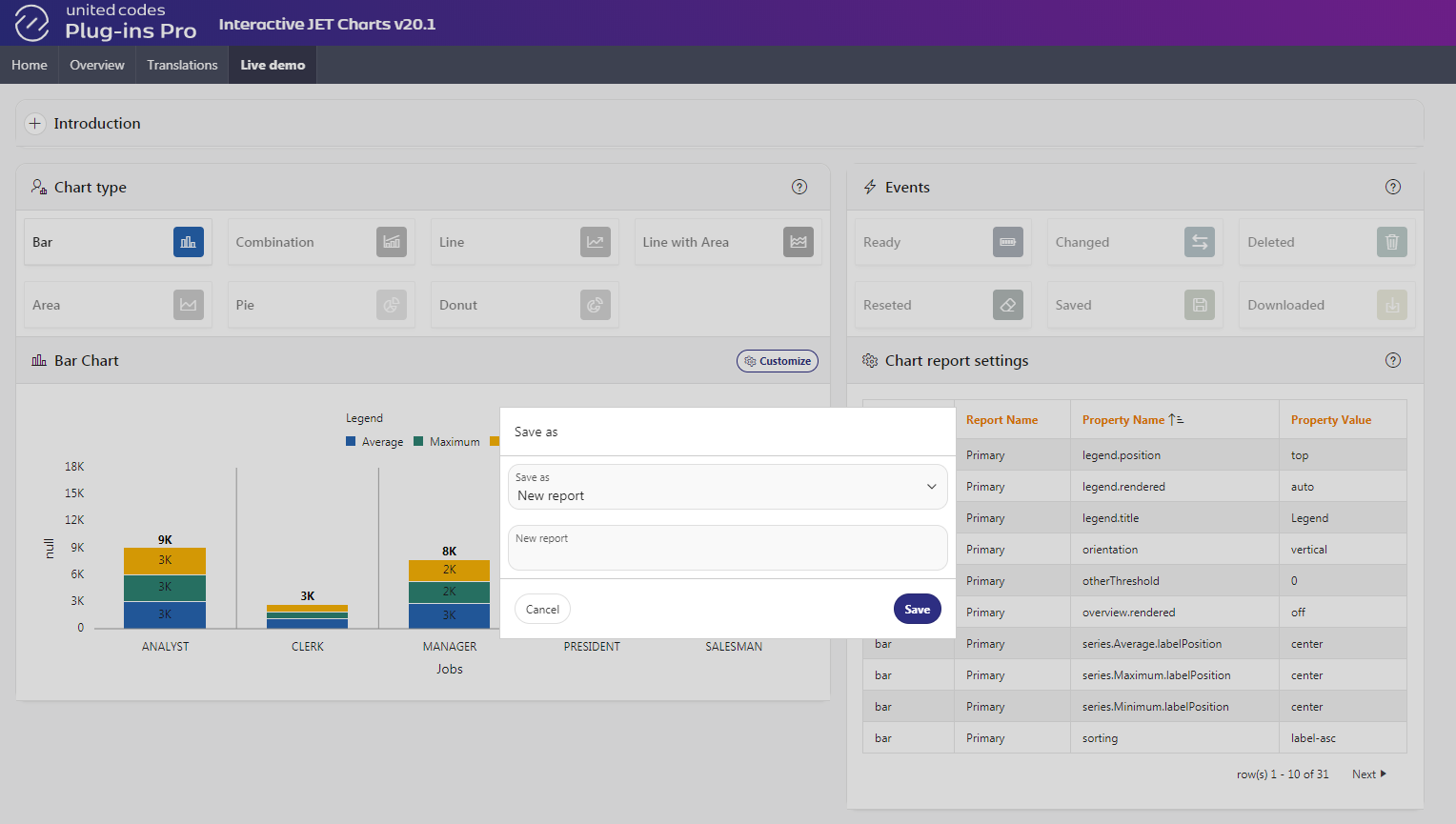

Reports \ Save

When selected, the plug-in generates an interface that allows the user to save any customizations applied to a chart. The plug-in calls a save procedure (defined in the plug-in application attributes) and displays a developer-defined message on success.

Reports \ Reset

When selected, the plug-in restores chart attributes to the initial state defined by the application developer.

Reports \ Delete

When selected, the plug-in deletes the currently selected chart report. The plug-in calls a delete procedure (defined in the plug-in application attributes) and displays a developer-defined message on success.

When a chart report is not selected the delete functionality is disabled.

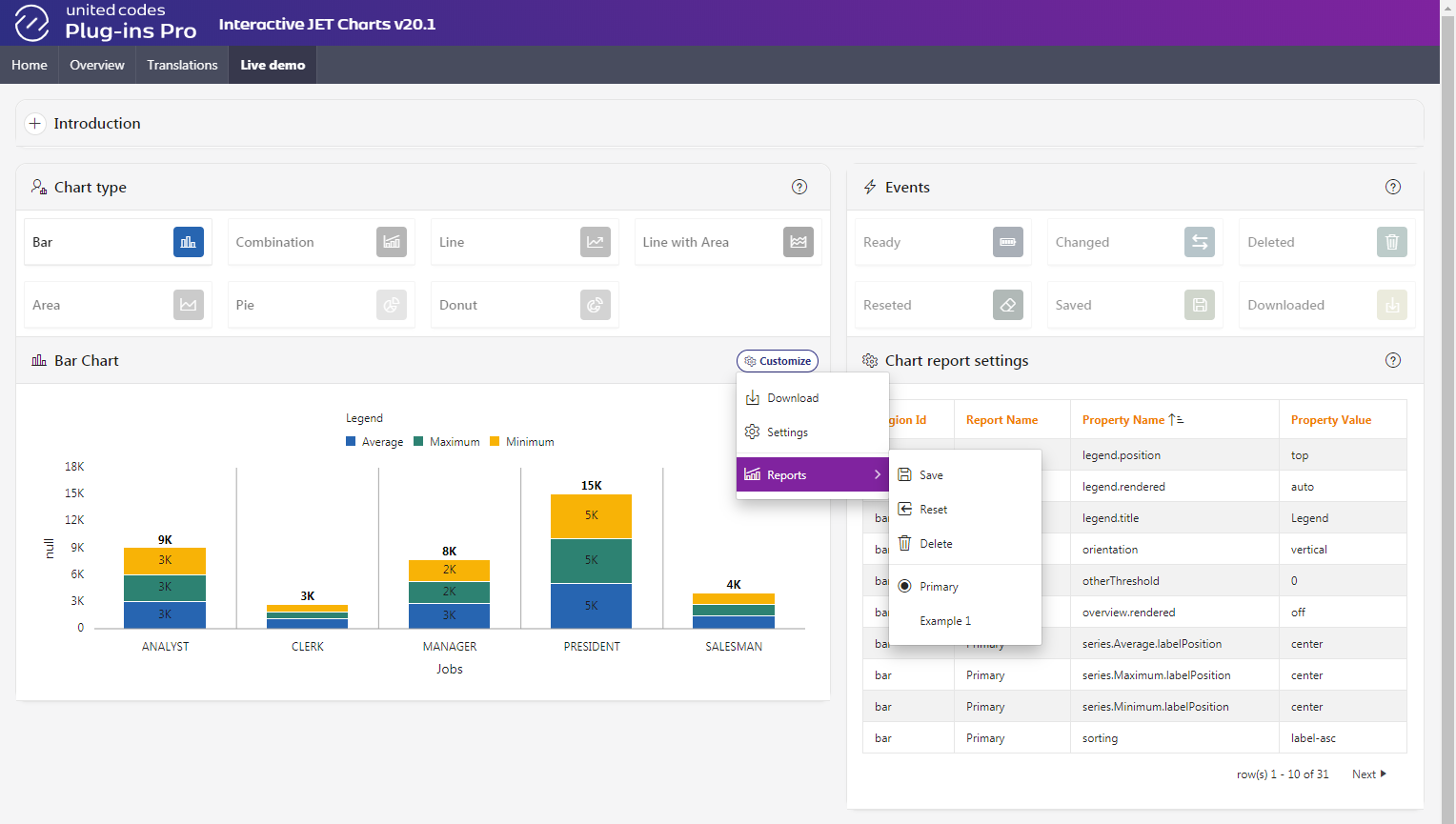

Reports \ Sub-menu

When selected, the plug-in displays a sub-menu with entries Save, Reset, Delete (the plug-in functionalities), and, below a separator, a list of saved reports. Selecting a saved report results in loading the saved customization to a chart.

Help in the Application Builder

The plug-in attributes are exposed along with help text built into the application builder for the plug-in application components.

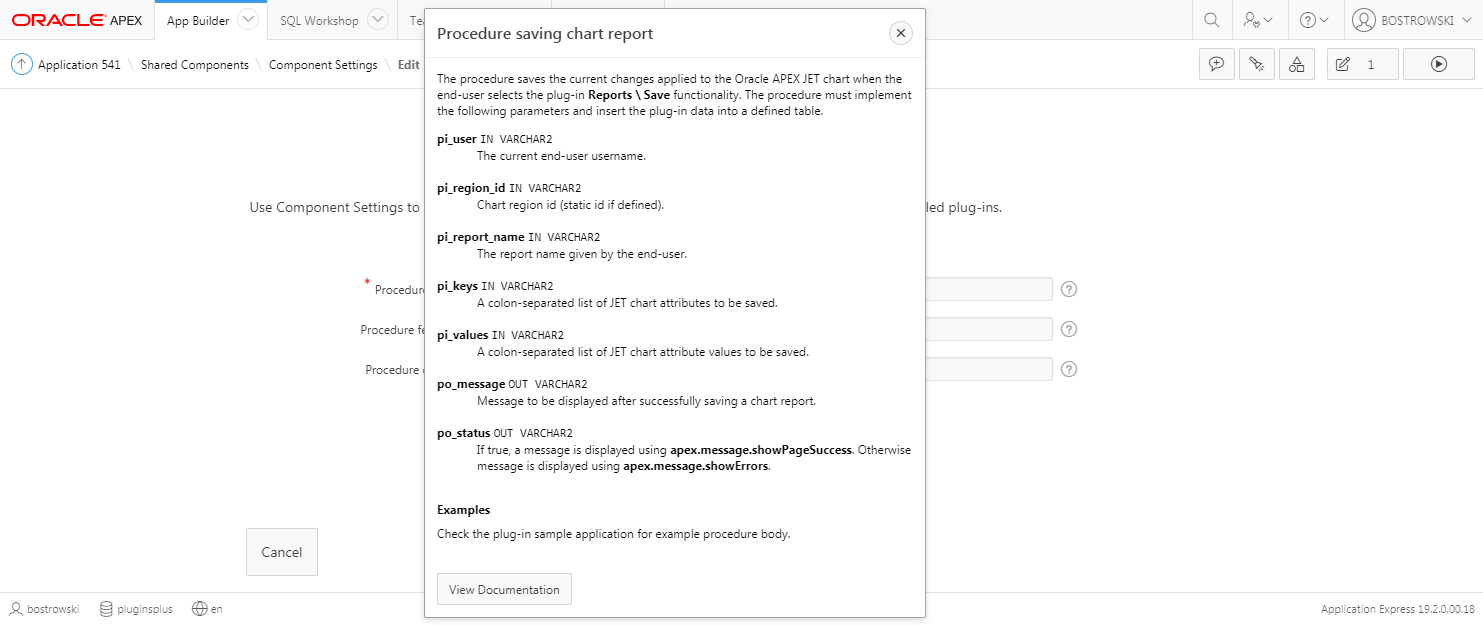

Example help for the Component Settings \ Procedure saving chart report
